In the previous issues, we introduced the functions, features, and applications of the Sibo medium-sized joysticks. This time, we will focus on the large-sized joysticks of Sibo (60mm size and above), and we will explain it in detail from three aspects. They are the Hall type joysticks with more diverse performance, the potentiometer type joysticks with stable and reliable performance, and the practical switch type joysticks. Next, let's start the exploration of Sibo large sized joysticks!

Part.1 Hall Effect Type Joysticks

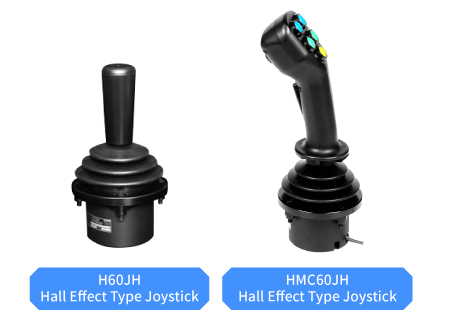

H60JH Hall Effect Type Joystick

Low priced two-axis adjustable joystick with built-in Hall chip and sturdy structure. It can be paired with special knobs and customized knobs. For those who need to achieve multi-functionality or the third or even fourth axis, a compact sized shaped knob can be optionally installed. Input voltage 5V and output 0.5-4.5V, other special inputs and outputs can contact us to customize, commonly used in robot operations, cranes operations, construction vehicles, civil engineering and construction machinery.

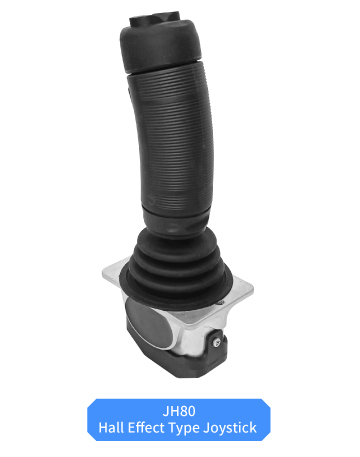

JH80 Hall Effect Type Joystick

Customers who choose JH80 often start with appearance - the standard knob is paired with a "banana shaped knob"; Loyal to performance - sturdy and reliable structure, protection grade IP67 (electrical part);Trapped in multi-functionality - capable of implementing various communication signals such as analog, digital, CAN/RS485, etc., handle switch with a "dead-man button", suitable for the situations with high safety requirements, such as aerial work vehicles and construction vehicles.

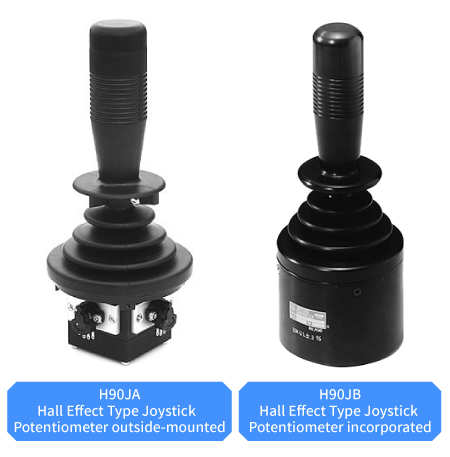

H90JA/H90JB Hall Effect Type Joystick

H90JA is a potentiometer outside-mounted type that can achieve more functional extensions, such as unilateral return.H90JB is a potentiometer incorporated type that can save installation space. They are both Hall effect type joysticks with longer service life and better adaptability to harsh environments with vibration and shock. And like the potentiometer type joystick 90JA/90JB, more operation functions can be achieved by installing a cobra shaped handle (see the introduction of C90JA/C90JB for details).

Part.2 Potentiometer Type Joysticks

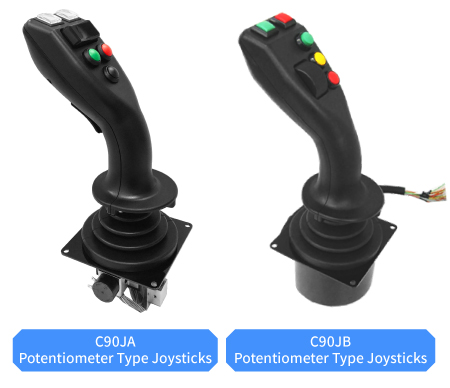

C90JA/C90JB Potentiometer Type Joysticks

The C90JA/C90JB two potentiometer type joysticks can achieve single axis, double axis, 3-axis, and even 4-axis and more adjustment. By installing a cobra shaped handle, a variety of switches and potentiometers can be installed. Users can customize the functions according to their own operating habits and needs, making the joysticks better adapt to the special needs of different users and improving the convenience and efficiency of operation. They are commonly used in various fields such as robot operations, cranes operations, construction vehicles, precision machine tools, civil engineering, construction machinery and medical instruments. They have become an ideal choice in many industries.

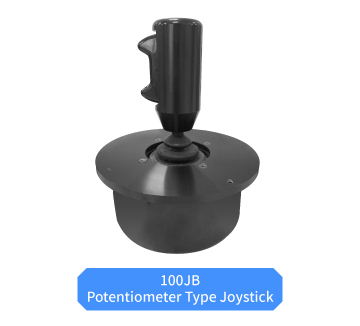

100JB Potentiometer Type Joystick

100JB is a special joystick under the Sibo brand, which comes with an installation disc for easy installation. The knob is equipped with a seesaw type potentiometer as the Z-axis potentiometer, featuring three-axis adjustment operation. It is commonly used in 3-dimensional coordinate measuring apparatuses, image processing devices, special vehicles, and robot operations.

Part.3 Switch Type Joystick

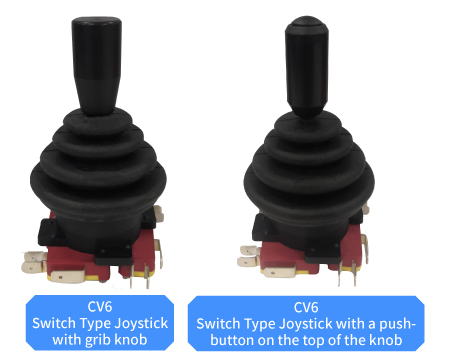

CV6 Switch Type Joystick

CV6 series joysticks have compact structure, diverse specifications, sturdy body, optional single axis and double axis operation, switch signal output, and can also provide customized analog output products. It is commonly used in medical instruments, film and television equipment and construction vehicles.

Sibo joysticks are highly praised in the industry for their diverse functions, rich signals, powerful customization capabilities, and wide application coverage! Our joysticks feature the design of countless transformations, like a versatile tool, ready to show their extraordinary strengths in different scenarios at any time. No matter what your needs, you can come to Sibo to find the one joystick you need!
