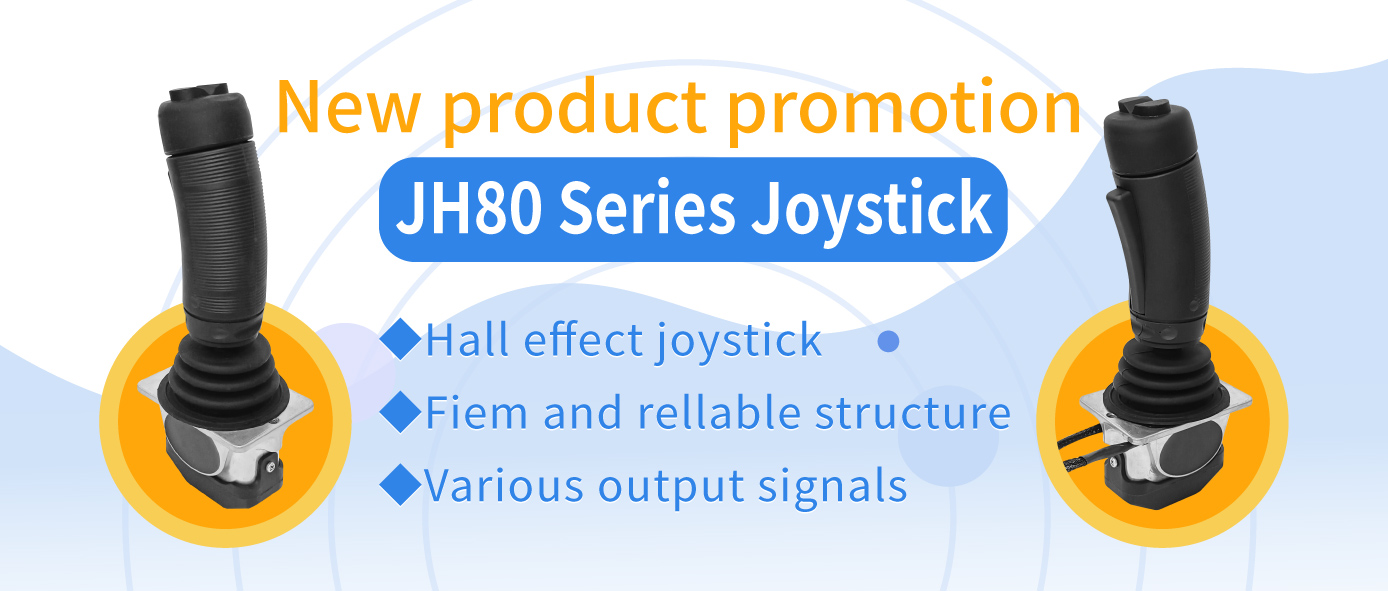

Hello everyone, today I’m going to introduce you to a new product from Sibo, the JH80 series Hall-effect joystick. In previous WeChat articles, we have introduced you to many of Sibo’s joystick products, which have a variety of types, complete series, and wide coverage of functions.  So, what’s so special about the JH80 we’re going to introduce today? Let’s talk about it.

01 JH80 features

The JH80 series joystick is a large non-contact joystick, whose core component is a patented product independently developed by Sibo - digital potentiometer, with a service life of more than 10,000,000 operations.

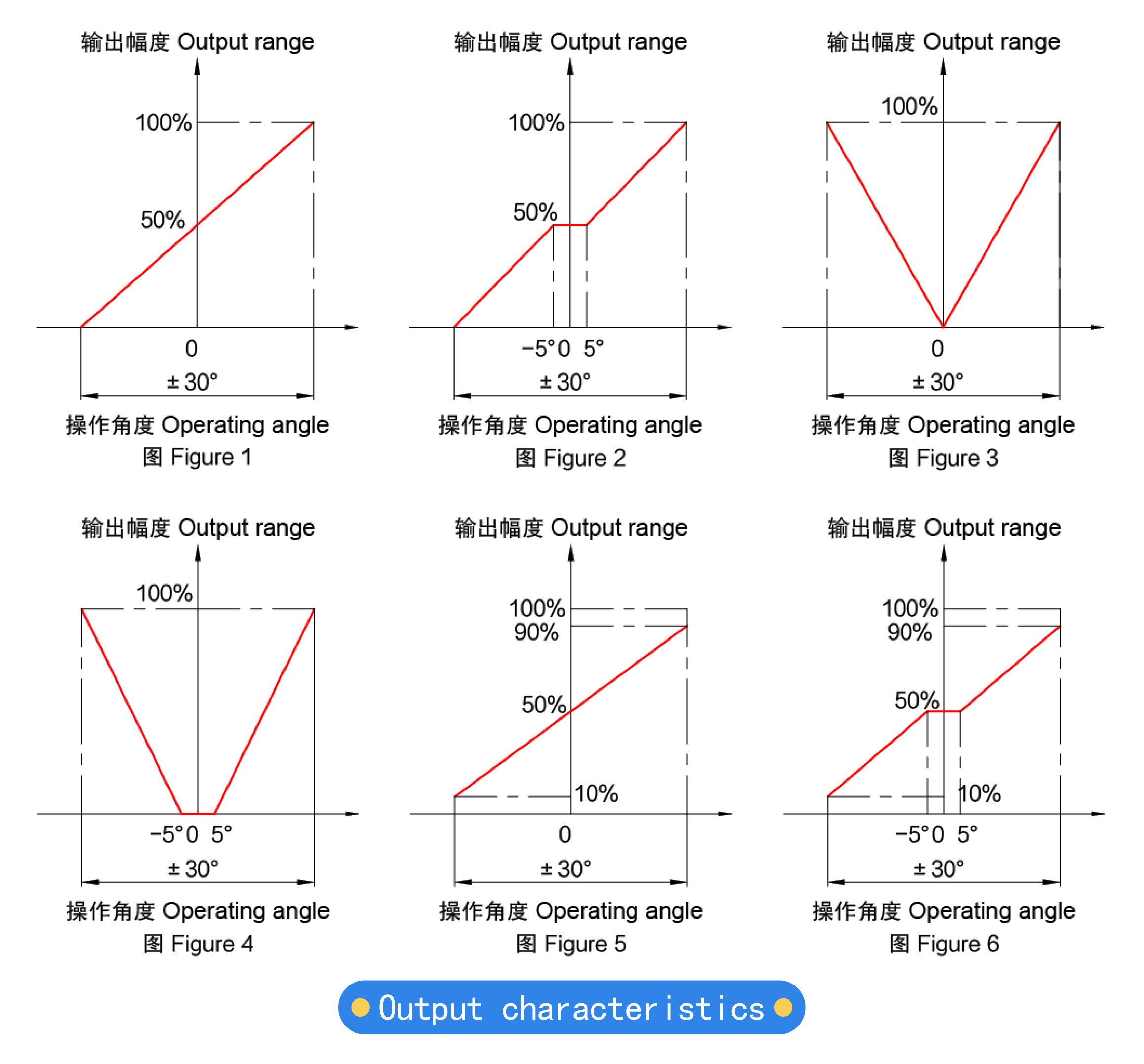

At the same time, the JH80 product inherits the advantages of Sibo’s digital potentiometer in signal customization, and can flexibly customize various special output signals according to customer needs: ① output amplitude; ② output angle; ③ dual-channel redundancy; ④ additional switch signals and so on are no problem at all. The output signal of this joystick is also very rich, common 0~5V, 0~10V, 4~20mA signals can be output, and the power supply adaptability is also strong, 5V, 12V, 24V power supply can be used, of course, if you have other special requirements on the input and output characteristics we can also provide you with special solutions to help you achieve the function.

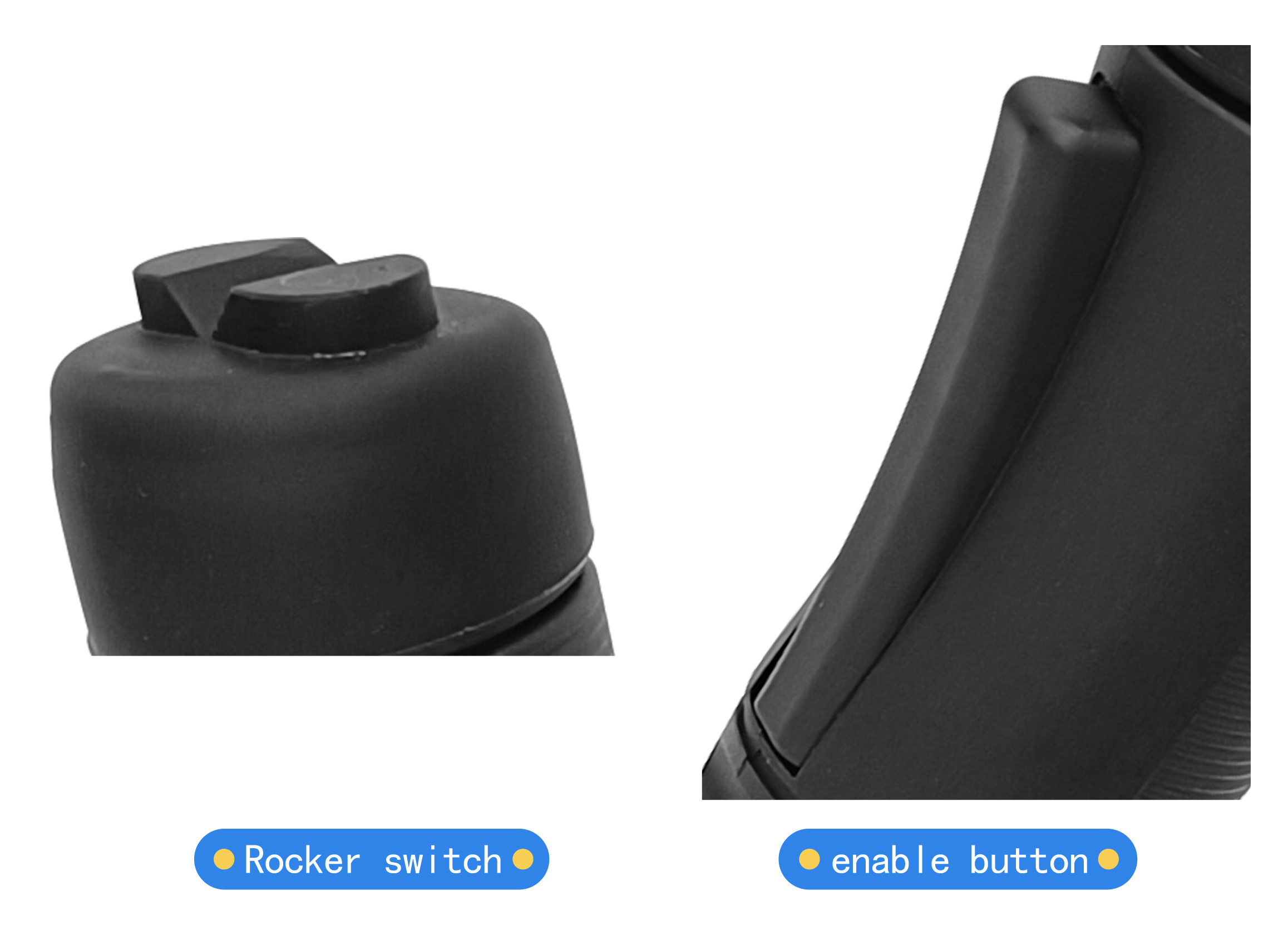

The JH80 standard configuration is single-axis spring reset type, with a rocker switch on the top of the handle and an enable button on the side of the handle for safety protection, making this product suitable for occasions with higher safety requirements.

02 JH80 applications

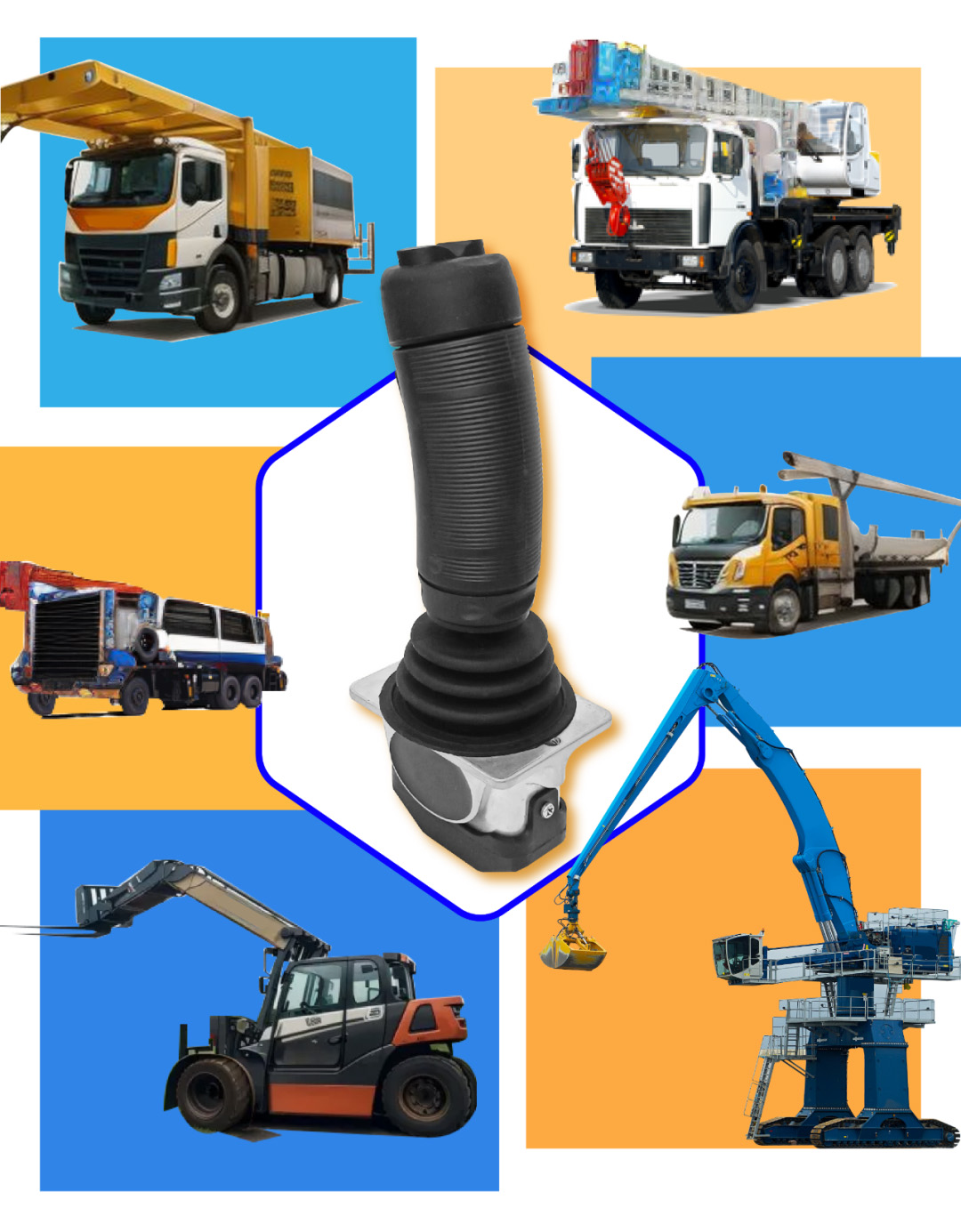

A good helper for construction machinery (aerial work vehicles, scissors trucks, cranes, etc.)

 The JH80 has a wide range of applications, with a metal structure for the main part, high strength, sturdy and reliable. Its protection level is up to IP67, high safety and rich output signals (analog, digital, bus signals, etc.). It is very suitable for various harsh outdoor environments, especially the engineering vehicle industry, where it can play all its advantages. For example, the following aerial vehicles are applicable: GS15**, GS15**, GS20**, GS26**, GS32**, GS19**, GS19**, GS20**, GS26**, GS32**, GS2669**, GS3369**, GS4069**, GS40**

In addition to the above introduction, JH80 also has a variety of other expansion capabilities, various special handles, special operating force, installation connectors and so on we can achieve for you. Self-locking type, friction positioning type products are also in smooth development, welcome interested friends to come to consult and request samples.

Welcome to use WeChat to scan the QR code, add exclusive customer service for Sibo, and obtain more information.

More information

Shanghai Sibo M&E Co., Ltd is a renowned enterprise and recognized by numerous awards such as Shanghai High-tech Enterprise, Shanghai "Specialized and Innovative" Enterprise, Shanghai SMS Enterprise, Shanghai Class AAA Contract Credit Enterprise and Shanghai Advanced Private Enterprise. Meanwhile SIBO has achieved quality management certification ISO9000.The company's products have been exported to overseas markets such as Southeast Asia, Europe and the United States for a long time. There are thousands of types of products, including potentiometers, joysticks, pedals, draw wire sensors, encoders, handwheels, and signal communication modules. Welcome to inquire and patronize!

For more product information, please visit Sibo's website at m.jianlite.cn/es/
